Wind Turbine Challenge 2.0

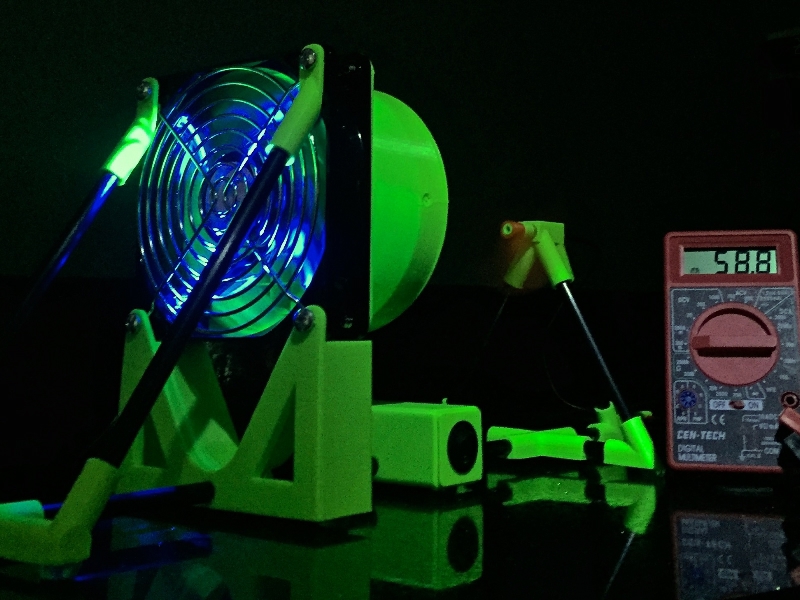

WTC2-0 Test StandGoal:

Design the wind turbine that generates the most power.

Performance Measurement:

Voltage (V)

Relevant STEM Principles:

Rotational inertia, aerodynamic force, torque, area, electrical power generation.

WTC Blade ParametersDesign Variables:
  1. Blade Angle
  2. Blade Height
  3. Blade Length
  4. Number of blades



Design Considerations

  • Rotational drag decreases with
    • Shorter blade length
    • Shorter blade height
    • Fewer blades
    • Larger blade angles (parallel to the wind)
  • Power gained from wind stream increases with
    • Increasing blade length
    • Increasing blade height
    • More blades
    • Larger blade angles

Power Calculation

Power generation is determined by measuring any two of the following Voltage (V), Current (I), or Resistance (R). With these measurements, the Power can be calculated with the appropriate formula from the formula wheel. The unit used for Power is Watts (similar to the units for Length can be Inches or Centimeters).

FormulaWheelElectronics

In the Wind Turbine Challenge 2.0 you will use the voltage and resistance measurements to calculate the Power your wind turbine blades are producing.

Using the equation P = V²/R and measuring Voltage and Resistance you will be able to determine the power produced.

Multi Meter Operation Help

Voltage Measurements

  • Set multi meter to read Volts DC – use the 200m scale (this is 200 milliVolts full scale)
  • Readings on meter will be in milliVolts

Resistance Measurements

  • Set multi meter to read Ohms (Ω) – use the 200 scale (this is 200 ohms full scale)
  • Readings on screen will be ohms

Unit Help

1 Volt = 1,000 milliVolts

1 Watt = 1,000 milliWatts =1,000,000 microWatts


The Process

Design > Build > Test > Repeat until optimized
Design Your Solution:
  • Evaluate sample blades when available to understand which parameters perform better.
  • Check the leader board for past attempts to see if previous parameter attempts are being provided.
  • Find a mentor to help you better understand how the variables interact.
Build Your Design:
  • Download the STL file for your design attempt.
  • Find a 3D printing source to print your STL file.
Test Your 3D Printed Design:
  • Place your finished 3D printed part onto the test stand.
  • Measure your results and have them uploaded to the leader board by the event coordinator.

Challenge Types

Limited Challenge: Design variables are constrained to print and desktop printers without support material in 15 minutes or less.

Unlimited Challenge: Designs are only limited to interface with motor hub.


Resources

Test Stands

To understand how your design assumptions performed, you will need to “build it” then “test it”. Your test results will help you determine how to adjust your design assumptions to improve your design.

Test Stand Options
  • Build Your Own
  • Kits
  • Ready To Go

3D Printers

Our Limited challenges are designed to be compatible with most desktop printers.

  • Free Online modeler provides STL print files
  • Designed will print in 15 minutes or less
  • Material usage is minimal
Finding 3D Printing Resources
  • In Your Community
  • 3D Printer Resellers
Get Your Own 3D Printer
  • If you are a regular player, having your own 3D Printer is a great next step.

Mentors

As the Challenges evolve, we want to provide a space for players and mentors to collaborate on designs and concepts.

A Mentor Forum is…..

under_construction2

We appreciate your patience while we get this online!
